Priced from $104,990
- 24ft Toy Hauler โ Double Bunk or Triple Bunk
- Off-Road Available
CADFL
Powered by Victron Energy & ARIZON Battery Systems
The van shown in the images includes optional upgrades and may differ from the standard model. Please refer to our Upgrades section for available options.
Priced from $104,990
Toy Hauler
CADFL

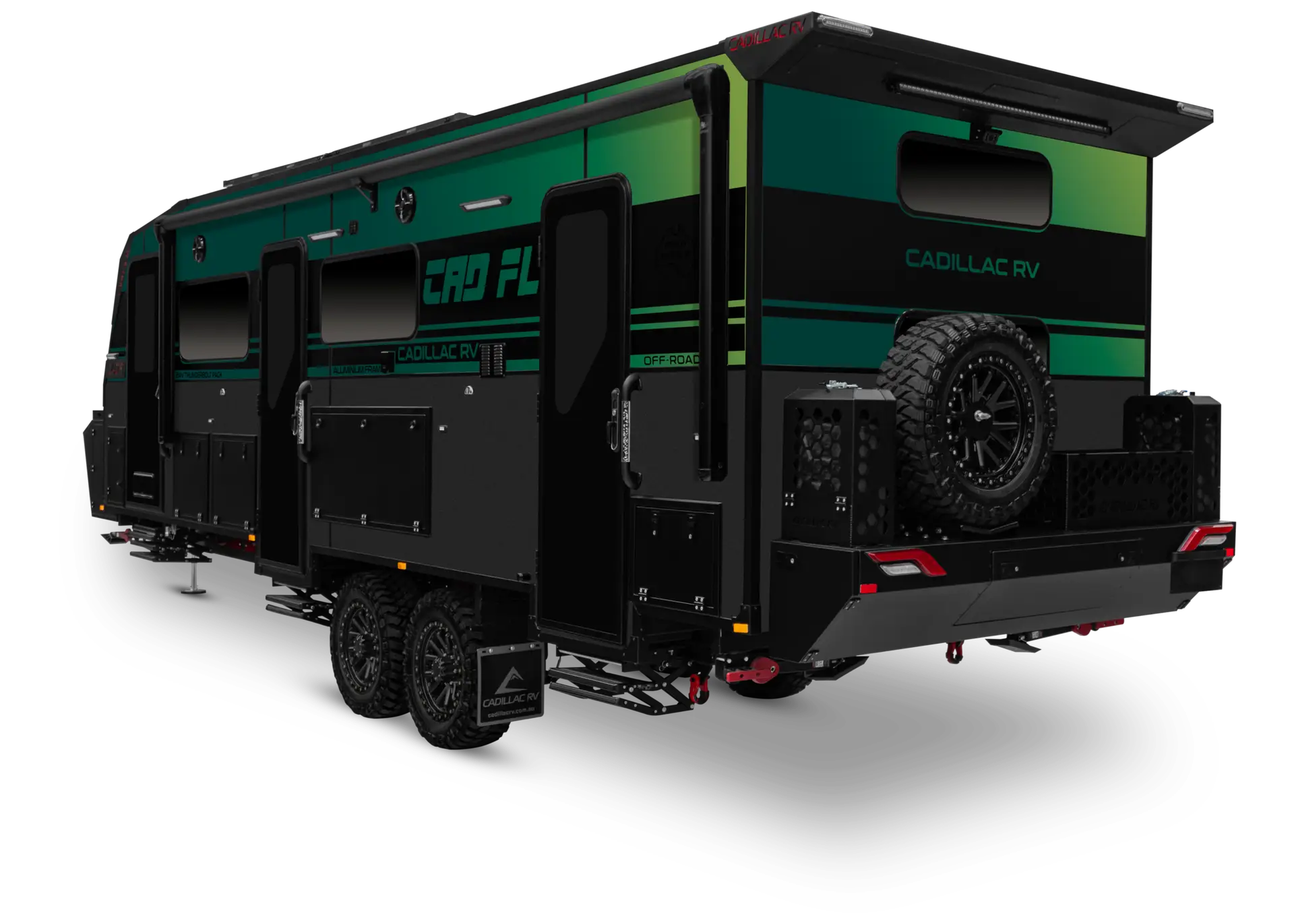

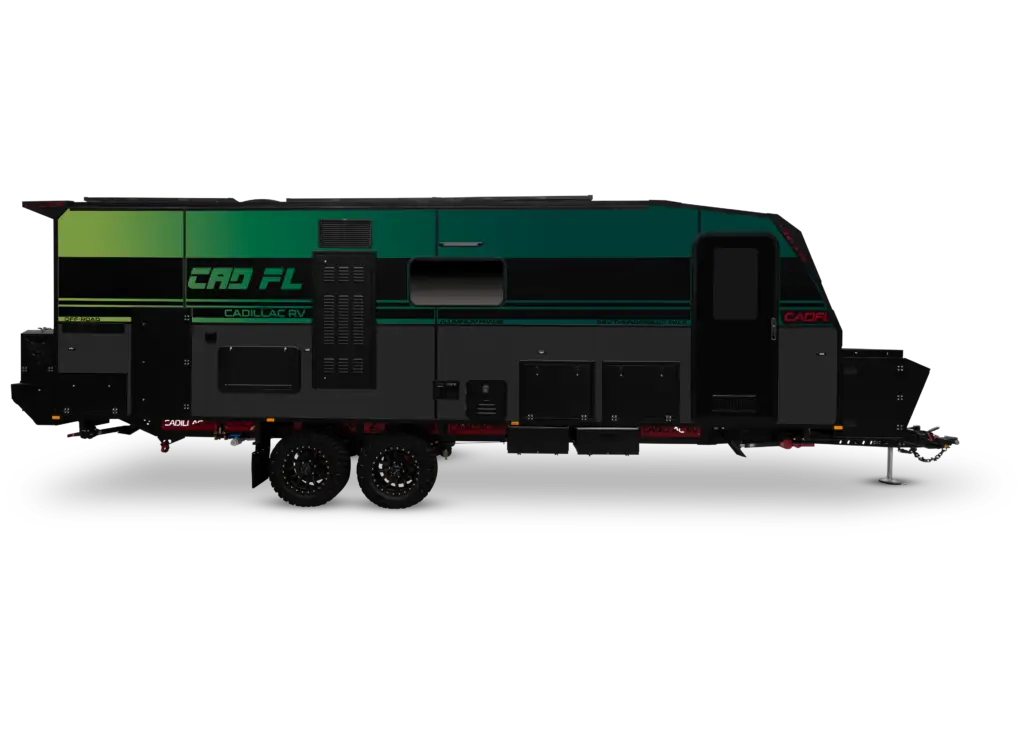

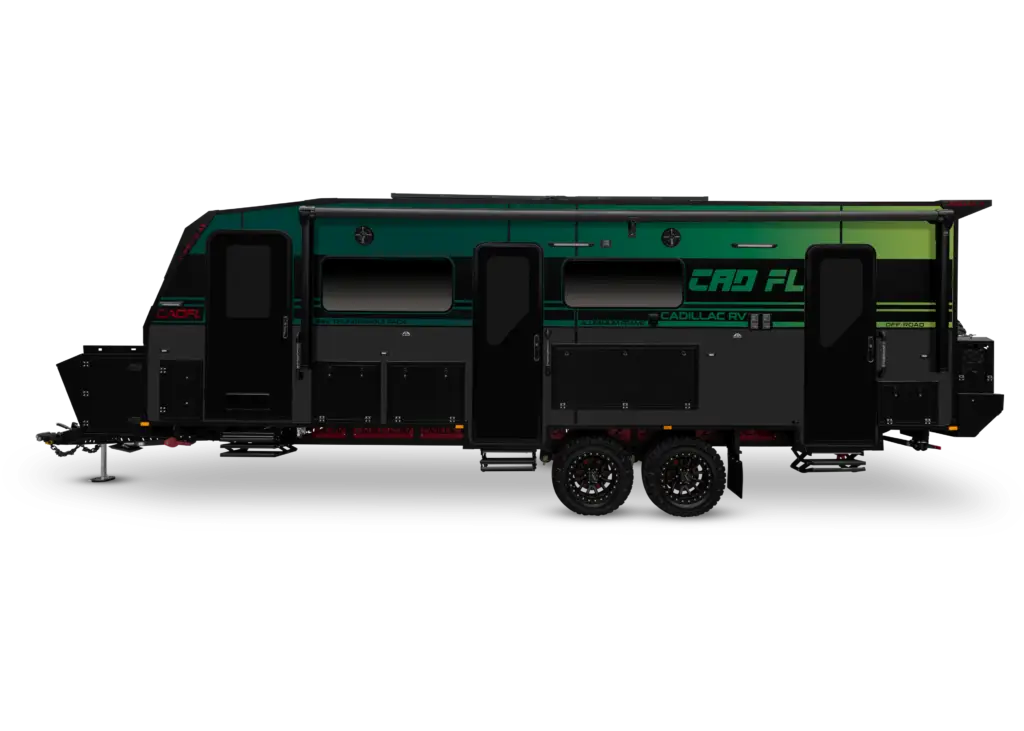

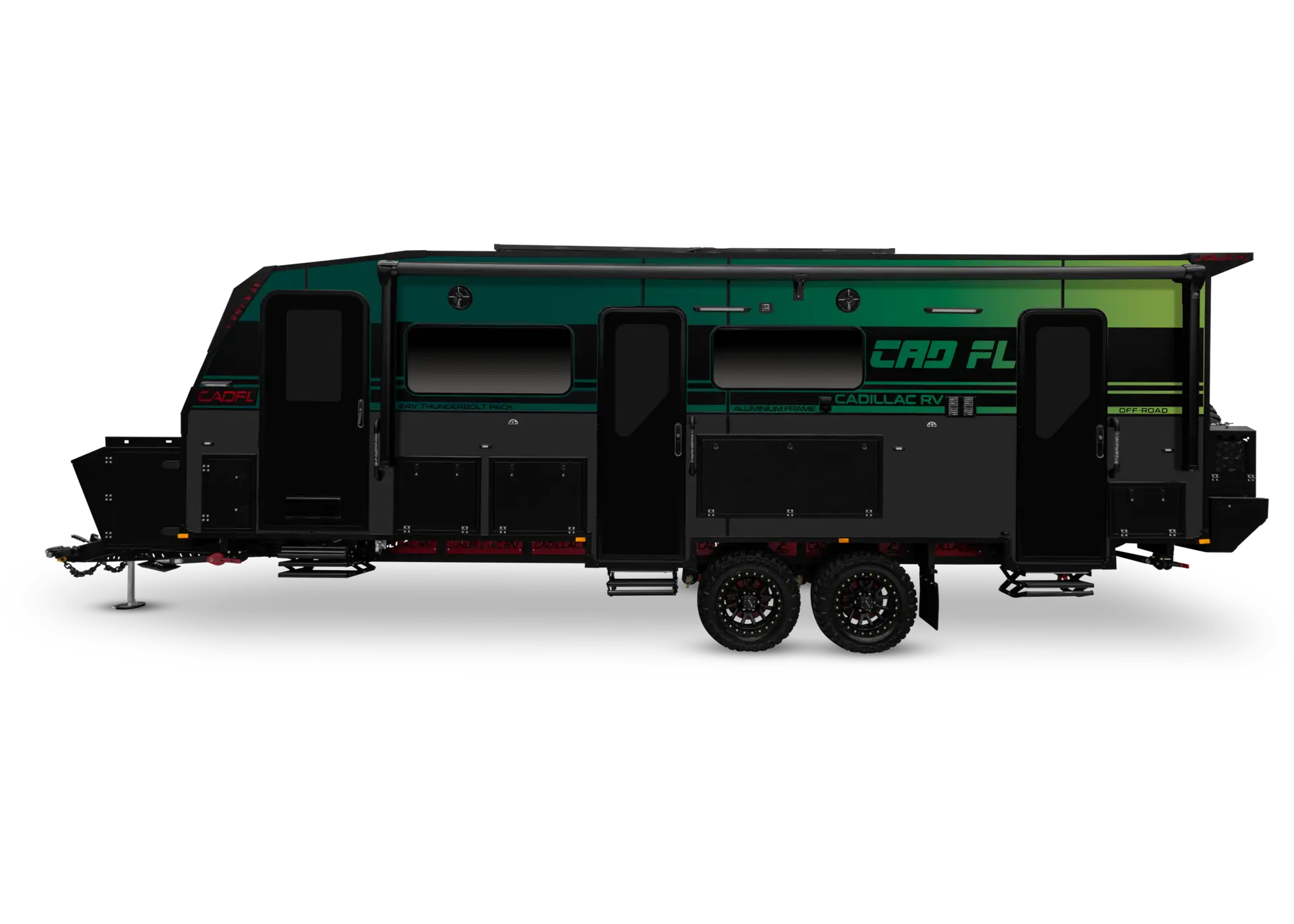

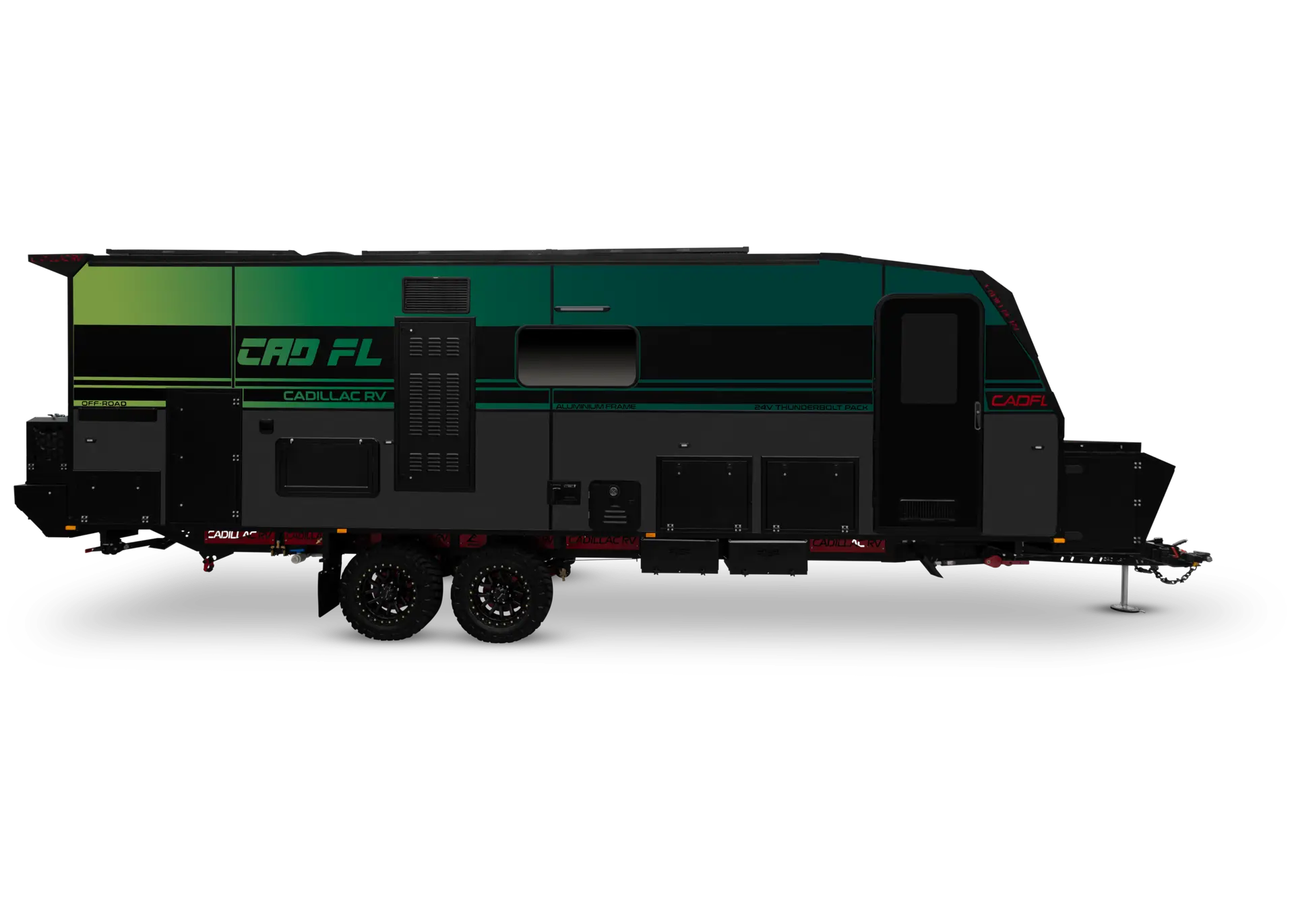

Australian-made toy hauler built for families who want to take everything and go anywhere.
With a spacious front garage, double or triple bunk options, and serious off-road capability, the CADFL is designed for extended adventures without compromise. Premium comfort, smart storage, and a feature-packed interior make every trip effortless โ whether you’re heading off-grid or across the country.
- Victron Energy MultiPlus-II 12/3000/120-32 230V Inverter
- Victron DC to DC 50A Charger and 65A Smart Battery Protect
- 1000w solar panels (4 x 250w Arizon panels) with 2 x SmartSolar Controllers MPPT 100/50
- 2 x Arizon 230Ah 12V LiFePO4 lithium batteries
- GREE 3.5KW Inverter Air Conditioner/Heater
- Honeycomb core waterproof one-piece floor construction
- DRS Dust Reduction System
Specifications
Weights & Dimensions
Tare
3100 KG
Ball
190 KG
ATM
3500 KG
Payload
400 KG
Cabin Length
24 FT
Overall Length
31.2 FT
Internal Height
6.56 FT
Overall Height
10.1 FT
Width
8.2 FT
Chassis & Suspension
Tow ball
Tandem axle
15/235 All-terrain tyres & rims off-road available
Australian-made Truss Chassis with Cadillac RV Inlays
Roller rocker suspension (off-road available)
Checker plate chassis box-mounted batteries
1x Spare tyre on rear
6" Drawbar
Electrical
Victron DC to DC 50A Charger and 65A Smart Battery Protect with 500A SmartShunt
Cerbo GX, Touch 50 (7-inch touch screen)
Victron Energy MultiPlus-II 12/3000/120-32 230V Inverter
1000w solar panels (4 x 250w Arizon panels) with 2 x SmartSolar Controllers MPPT 100/50
2 x Arizon 230Ah 12V LiFePO4 lithium batteries
240v point & 12v socket
Wireless phone ports on each side of the bed
Starlink Mini ready with socket
External
Tap on A-Frame
External gas bayonet
External picnic table
One-piece fibreglass roof
Large tunnel boot (560mm x 500mm)
Honeycomb core waterproof one-piece floor construction
Checker plate chassis box-mounted batteries
Entertainment unit (TV bracket, power point, 12v) and External speakers
Meranti timber frame with full insulation
Extended A-frame with toolbox
External LED lights (front & rear + sides, includes bug light function)
Rollout awning with centre support
1 x Spare tyre on rear
Aluminium Composite Cladding
LED Lava Grab Handle
2 x 9kg gas bottles
2 x 110 litre fresh water tanks
1 x 110 litre grey water tank
Internal
USB Charging Points
2 x LED Skylight hatches

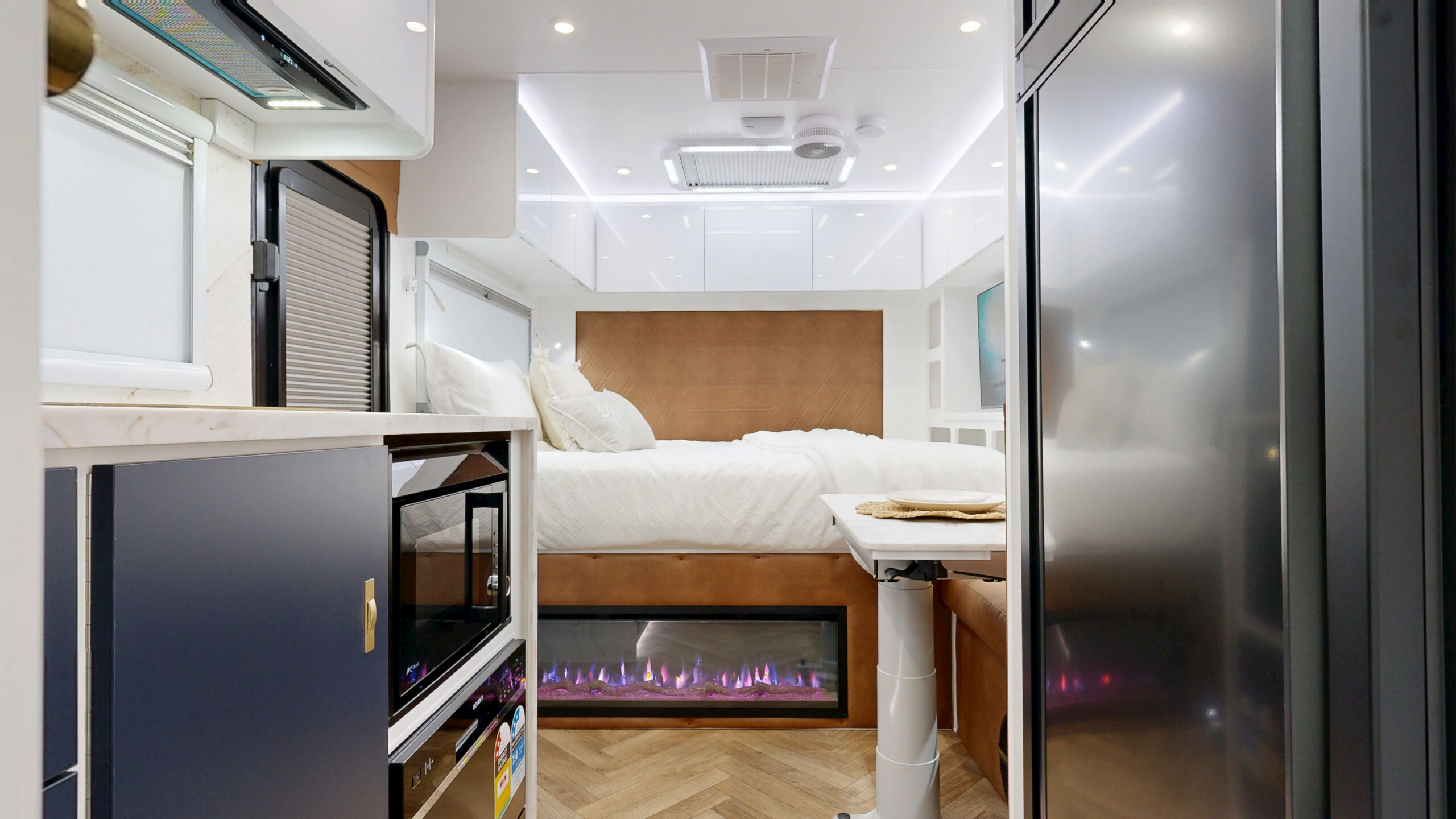

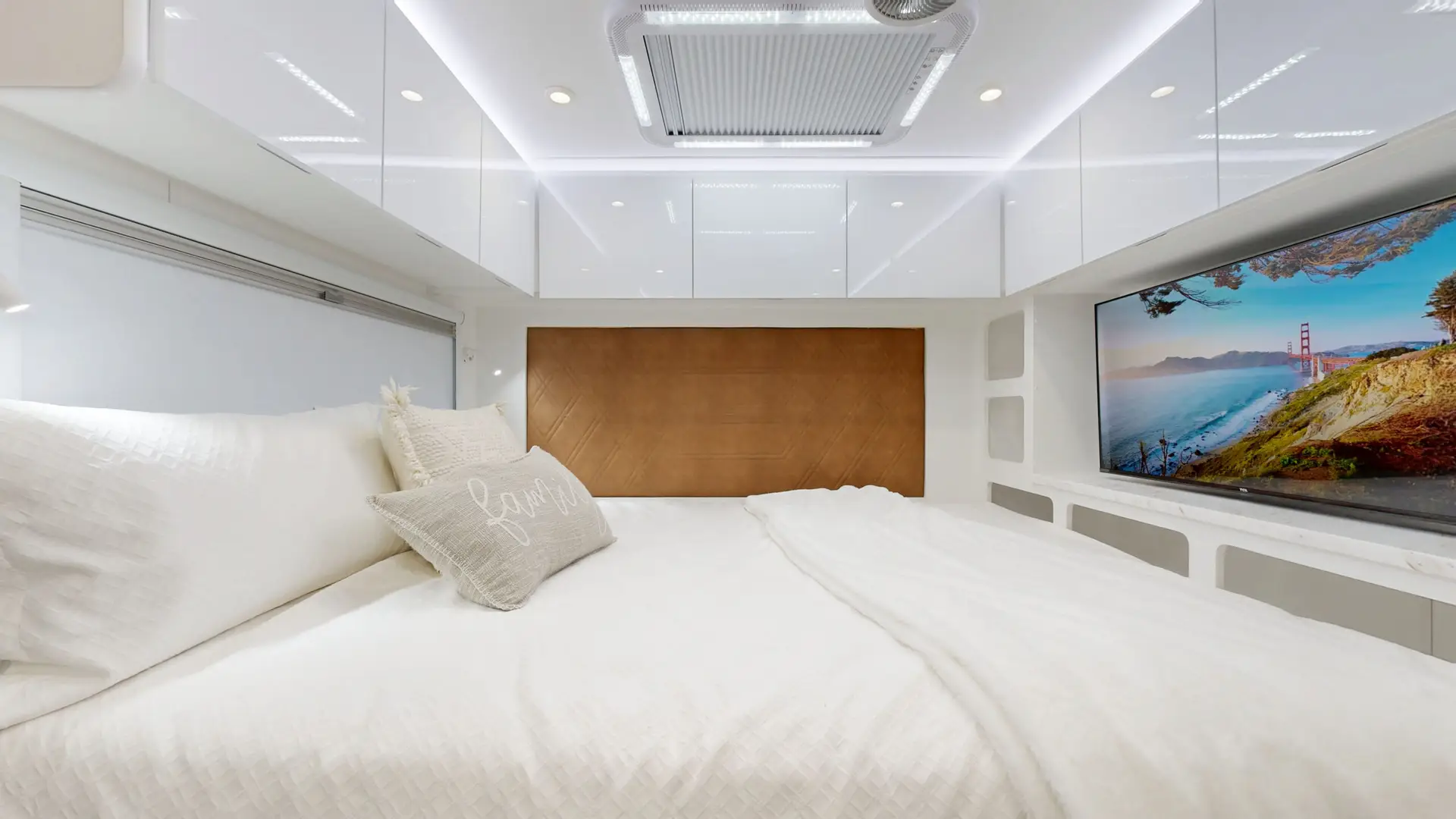

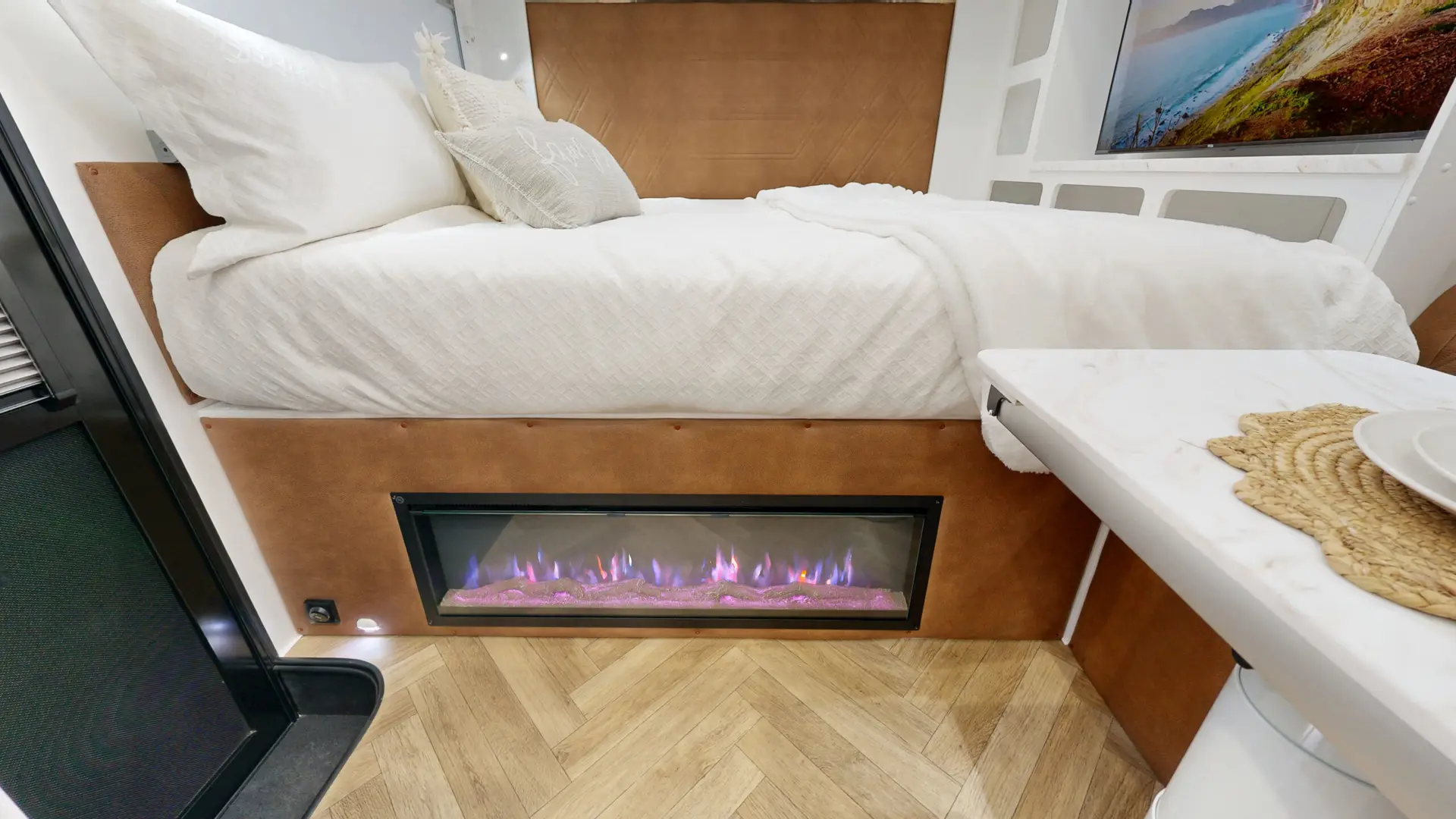

King bed with inner spring mattress

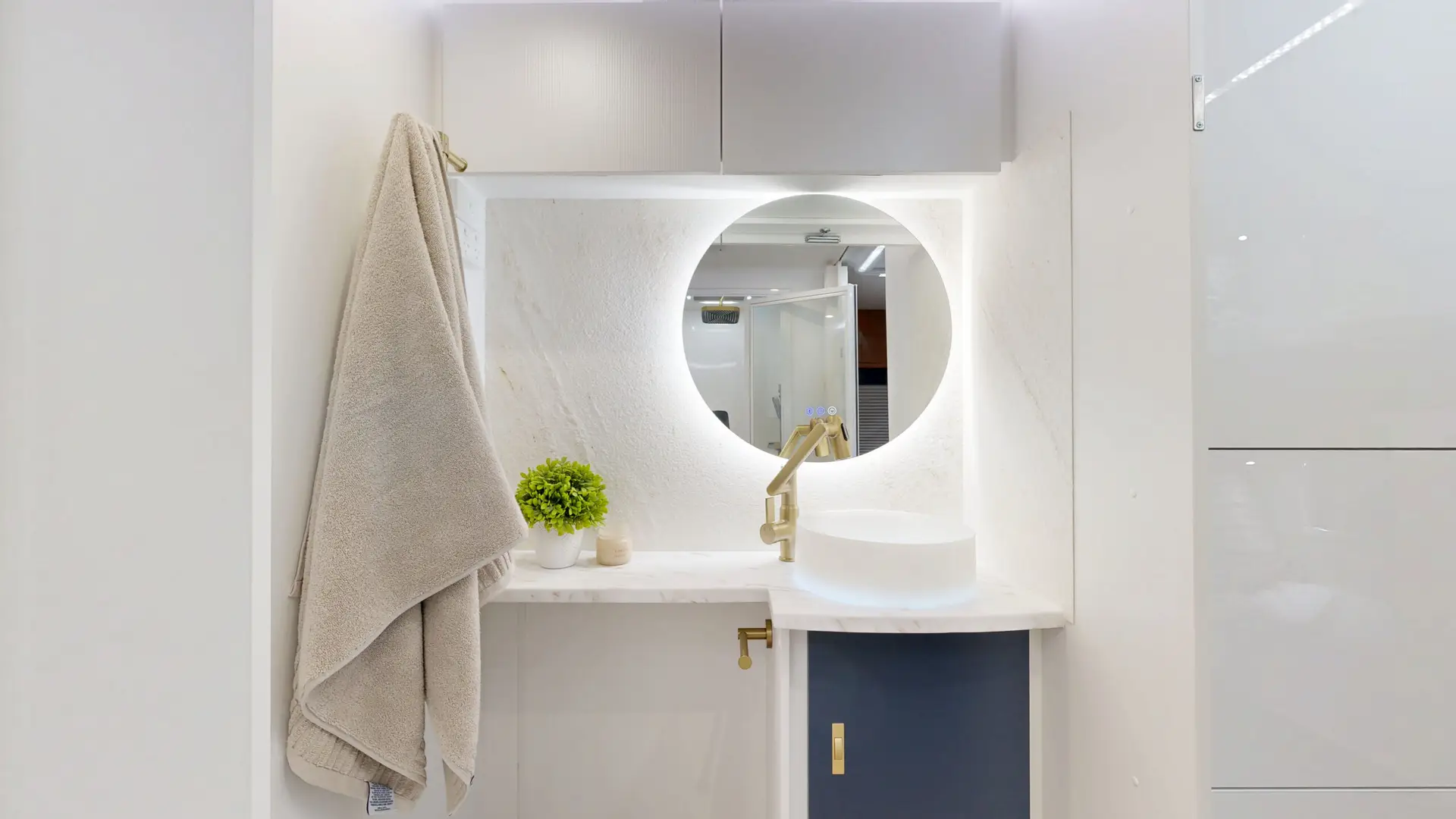

Full ensuite with separate shower & toilet plus vanity basin
Double-glazed windows with inbuilt privacy & fly screens
LED lights to all areas of the van which have inbuilt USB points
Straight lounge seating in soft vinyl with hand-stitched upholstery

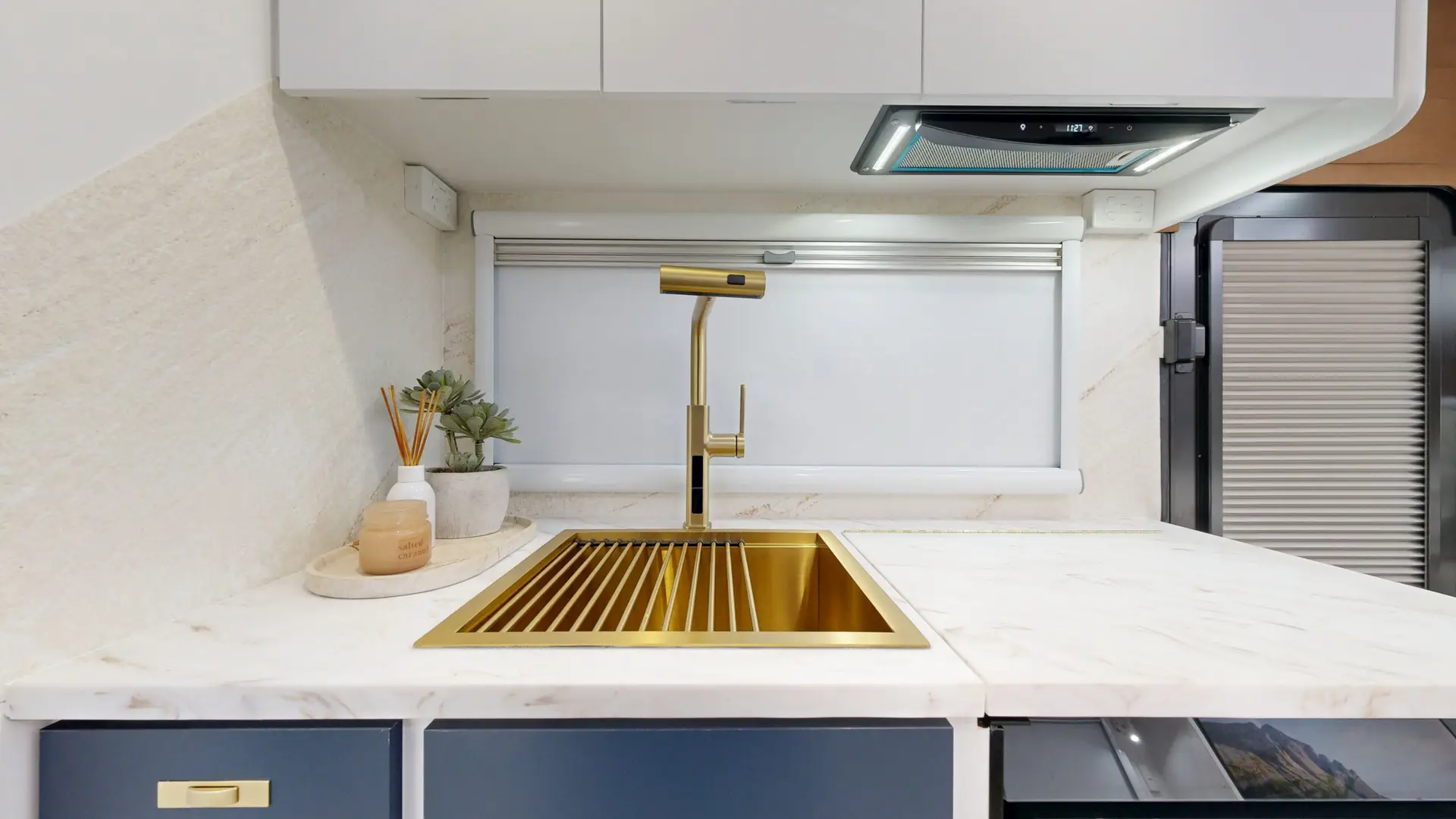

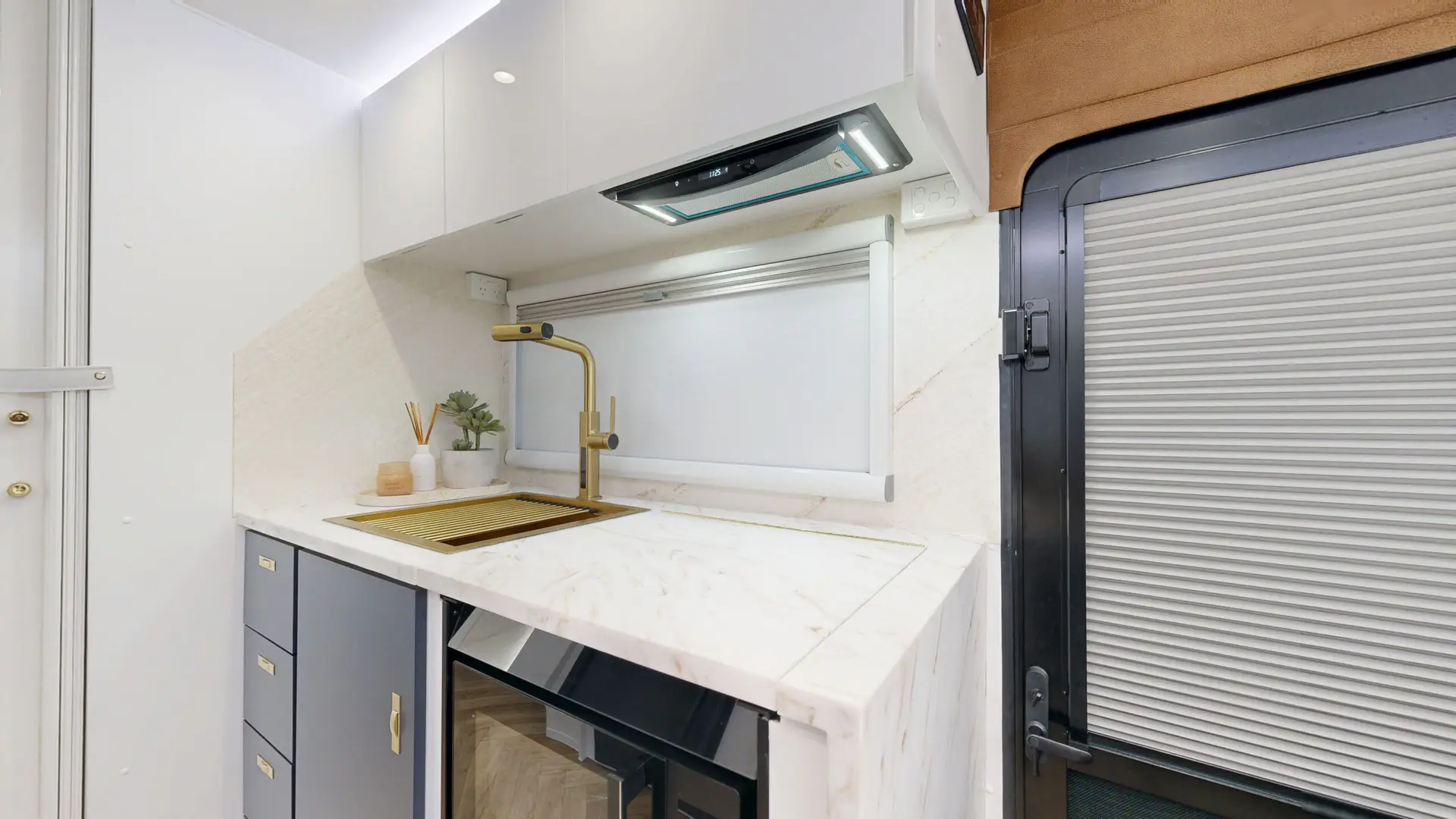

Standard stainless steel kitchen sink and fixtures
28 litre gas & electric hot water service

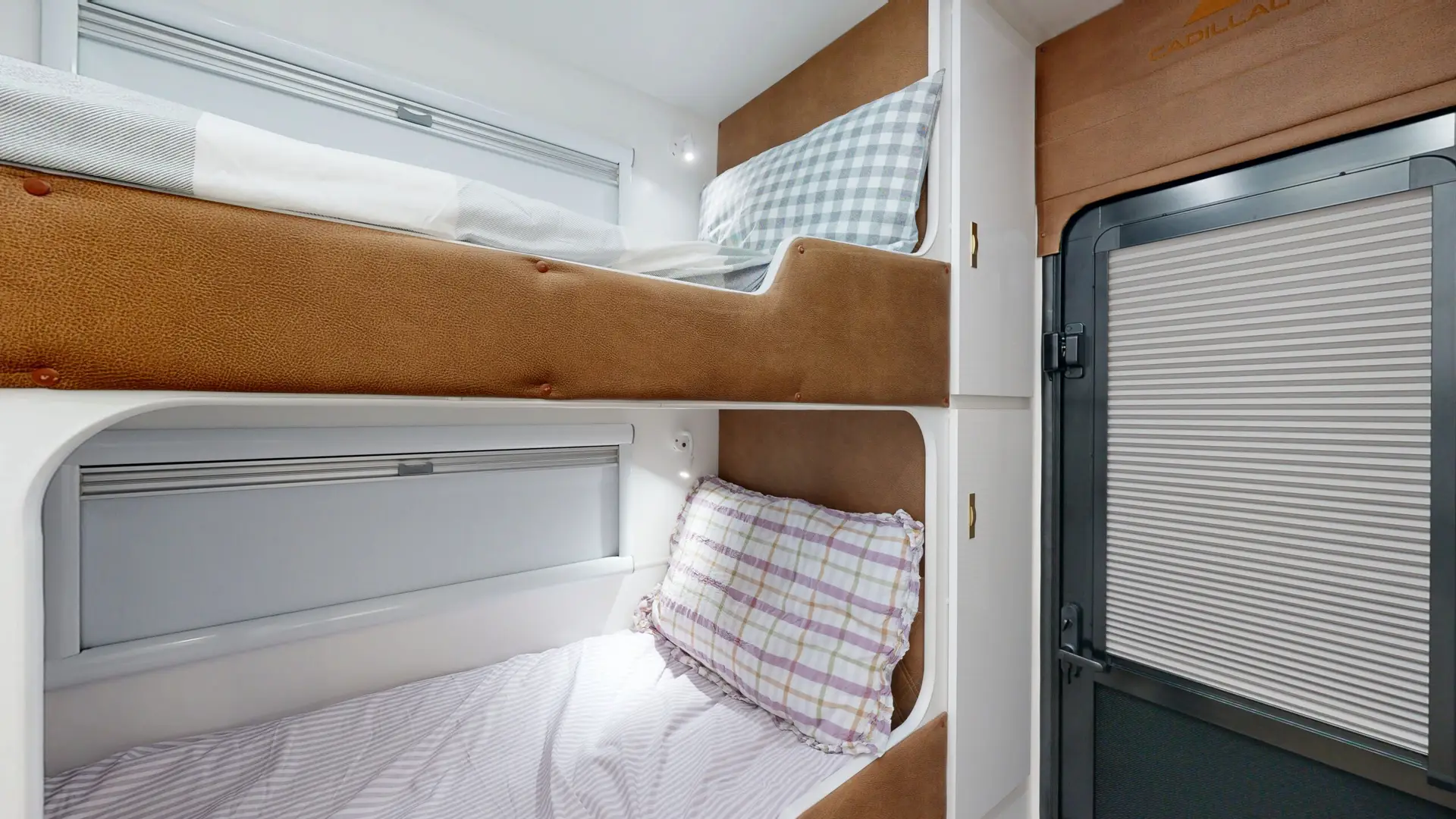

Full adult-size bunk beds or triple bunks (6' x 2'2")
Lift up master bed on struts with underneath storage (only in queen bed)
Telescopic dining table with an insert cushion available
NCE Fan to master and bunk beds with remote control
Backlit Mirror
Appliances
Front loader washing machine
40-inch Smart TV with remote 12v/240v

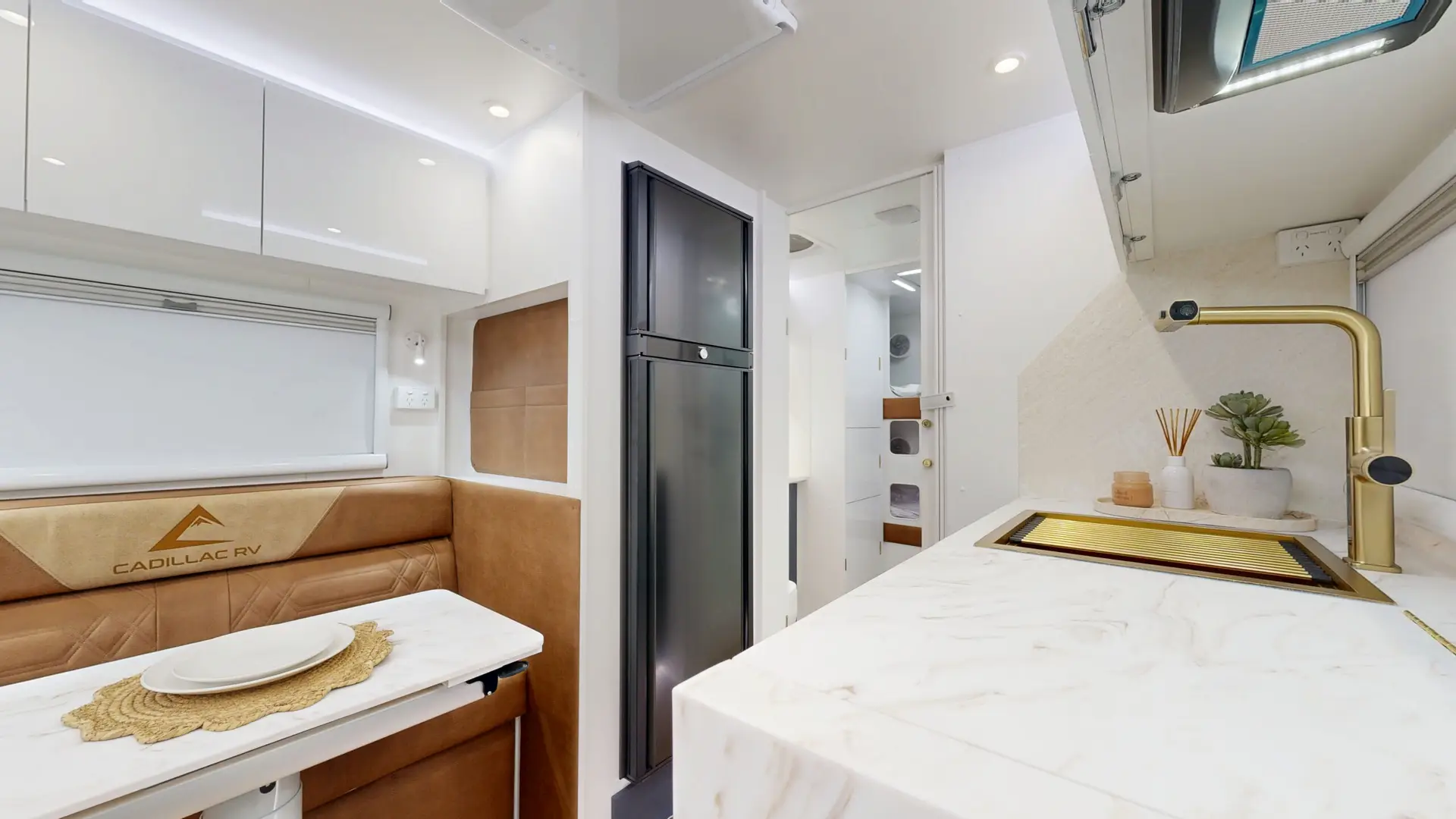

Large 270 litre 12V Compressor NCE Fridge
GREE 3.5KW Inverter Air Conditioner/Heater
Bluetooth stereo system with remote
Safety Dave Bluetooth reverse camera with 6" monitor

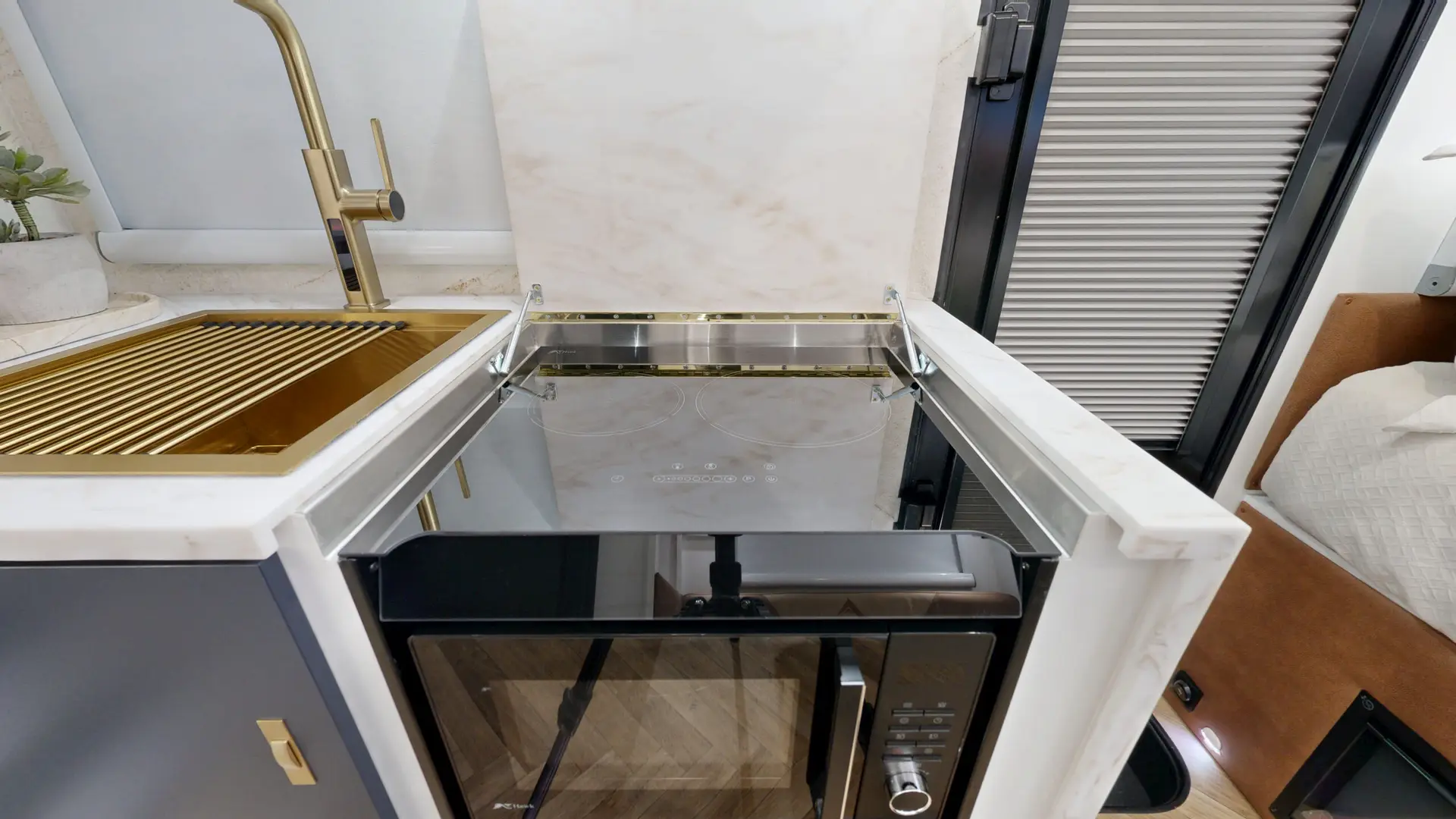

Combo (Microwave/ Air Fryer/ Convection) and Induction (2-burner) or Full-size gas oven with 4-burner cooktop (1 is 240 electric burner)
DRS dust reduction system
Upgrades
Thunderbolt Package 24V: 5000W Victron inverter, 24V solar panels, 2 x Arizon 25.6V 230Ah lithium batteries
Battery Package: Upgrade to 2 x Arizon 460Ah lithium batteries
Decorative timber on the main bed and bathroom
Fusion stereo system outdoor surround sound
32-inch Smart TV with remote
Exterior colour additional cost for a different colour other than dark grey, black and white
Ceramic Coating (Inside & Outside)
Independent suspension (DO35, 16" tyres and 12โ electric brakes)
Electric awning bluetooth enabled
Upholstery around the bed base
Clothesline
Bike Racks 2,3,4
Additional Fan + remote
Electric Jack + Anderson Plug
Additional 110 litre fresh water tanks
Gladiator Package
Slide-out tunnel boot
X-plate + Smooth finish toolbox
Diesel Heater
Stone guard
Additional PowerPoint
Aluminium Frame
Raptor-coated chassis
Mickey Thompson tyres
LooSeal Toilet or OGO Compost Toilet
Mirrored shower door
Backlit mirror
Black, Gold, Nickel / Copper Packages
Instant hot water
Annexe
Upgrade to 17-inch wheels/rims
Dishwasher (installation is subject to available space)
Electric steps
Outdoor hot/cold shower
ATM Upgrade 3.7, 4.0 or 4.5
Cowfish VanTenna
Floorplan
- Sleeps: 2 - up to 5
- Tare Weight: 3100kg
- ATM: 3500kg
- Ball Weight: approx.190kg
The van shown in 3D tour includes optional upgrades and may differ from the standard model. Please refer to our Upgrades section for available options.
Warranty
All our caravans come with a 5-year chassis warranty and a 2-year manufacturerโs warranty
Ready to build your caravan?
All specifications, features, images, videos, pricing, availability, and weights are provided for information purposes only and are subject to change without notice. While every effort is made to ensure accuracy, Cadillac RV accepts no liability for any errors, omissions, or changes after publication. All stated weights are approximate and may vary due to optional upgrades, configurations, and manufacturing tolerances.
The 1,000th Build
This is what a thousand builds of uncompromising Australian craftsmanship looks like rolling out the door. The CADFL โ our most capable van yet, and van number 1,000 to prove it.
